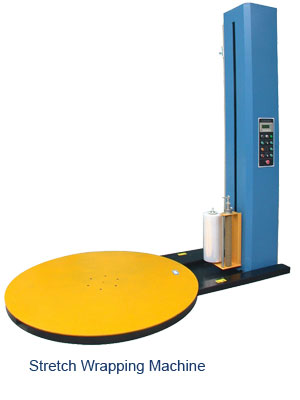

Pallet Stretch Wrapping Machine SPSBW:
Stretch Wrapping Machines are used to stretch wrap film around a loaded pallet. The wrapping provides extra support and security while the products are being additionally wrapped loads can be easily separated and identified and can be easily handled.Stretch Pallet wrappers are widely used in electronic, food industry, coir products, beverages and home appliances industry.
The machine has Auto Pneumatic clamp and cutting assembly thus increasing the efficiency and saving time. The machine has height sensor with top and bottom wrap counters, with the option of reinforcement wrap the machine has pre-stretch facility.
Features :
Technical Specification:
| Model | SPSW 2000 |
| Wrapping size(L*W) | (500-1200)mm*(500-1200)mm |
| Packing height | L type:(500-2000)mm |
| H type:(500-2400)mm | |
| Y type:(500-higher than 2400)mm | |
| Packing efficiency | 20-40 loads/hour |
| Turntable speed | 0-12rpm |
| Turntable diameter | Diameter:1650mm height:85mm |
| Turntable loading(max) | 2000kg |
| Up-down frame | Double- chain, Up-down speed variable |
| Film carriage | Pre-stretch |
| Control system | PLC |
| Machine weight(max) | 700kg |
| Machine size | 2650mm*1650mm*2400mm |
| Packing size | 2650mm*1650mm*700mm |
| Electrics | Single-phase 220V/50Hz |
| Power | Turntable:0.75kw,film carriage:0.3kw,up-down:0.4kw |
-

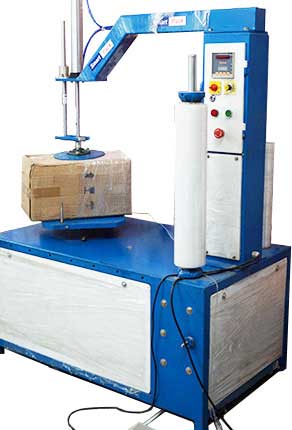

Box Stretch Wrapping Machine SPSBW 600:
Box Stretch Wrapping Machine could be used for wrapping single cargo or some small cargos combined. Pneumatic top plates ensure it clam and safety packing. The packing height, fixed film carriage or up-down film carriage can be choosing according customers request.
Features:
- Features - Robust construction.
- Controllable cycle time.
- Safety features incorporated.
- Indigenous design.
- User Friendly.
- Easy manipulation of load to provide bi-directional wrapping.
- Low power consumption.
- Variable speed.
Technical Specification:
Model
SPBW 600
Machine Size (L*W*H)
1400mm*650mm*1160mm
Packing Size (L*W*H)
(300-1000)mm*(300-800)mm*(300-500)mm
Turntable Speed(rpm/min)
27 rpm
Turntable Height (mm)
460 mm
Electrical requirement ( V/Hz)
220V / 50Hz / 1 Phase
Power (Kw)
0.37 Kw
Turntable Loading (kg)
70 kg
Packing Efficiency
30-60 Loads / Hour
Machine Weight (kg)
100 kg
