Continuous Band Sealers:

Our industrial grade band sealers are ideal for sealing thermoplastic materials (PP, PE, laminates) of any size and length. We carry both horizontal band sealers (bags lay flat on the conveyor) and vertical band sealers (bags are in a standing position on conveyor) which allow our band sealers to be used in a wide range of applications and industries. Speeds of band sealers are considerably faster than other types of sealing (up to 472 inches per minute). :-

Features:-

  • Durable stainless steel construction.
  • Easy to operate - minimal operator training.
  • Fast warm up time.
  • Seals any thermoplastic material including PE, PP, and laminates.
  • Adjustable speed conveyor to accommodate materials varying in thickness.
  • Motorized rubber conveyor with speed control.
  • Digital temperature control (0-572°F) (0-300°C) to maintain seal bars at proper temperature for consistent seal quality.
  • One pair each of heating and cooling blocks.
  • Sealing speed of up to 472 inches per minute (depending on the operator, ~20-26bags/minute).
  • Maximum seal width - 8mm, 15mm, and 20mm.
  • Options: embossing or solid dry ink coding or hot stamp ribbon printing.
  • Conveyor belt can be vertically or horizontally adjusted.
  • Spare parts kit and instructions included.

    • Each band sealer comes with a tool box containing spare bands, PTFE belts, tools, and a type set. Some models can be interchanged easily from horizontal to vertical to free standing positions with an optional conversion kit.

    Easy to operate.

    Turn on the power and heat switch of your band sealer. When the preset temperature has been reached, place the bag in the positioning plate. The sealing band carries the bag forward and seals the bag instantly. No pushing or pulling is required.

    Custom specifications accepted.

    We carry a wide range of band sealers from light to medium to heavy duty accompanied with a full set of optional features. Please contact us for further information.



    Horizontal Continuous Band Sealer:

    horizontal_continuous_band_sealer

    With the objective of providing quality Horizontal Continuous Band Sealer Machine, we are progressing the industry as the professional Manufacturer, Supplier, Exporter. This machine is extremely tough, consumes energy of 650W and has the sealing speed of 0 to 12 or 0 to 16 m per min,. In addition, Continuous Band Sealer has the sealing width range of 8 to 10 mm, and the film's thickness is 0.08 mm. Adding on, this sealing machinery is very easy to install and maintain. Our equipment are used in various sectors such as printing, sugar, textile, paper mills and others. These are designed from high technology and latest machines and tools as per the international quality norms. Backed with fully fledged fabrication plant, we have been persistently meeting the demands of band sealers. We have a team of highly competent and experienced professionals having vast expertise in the domain of sealing equipment. With their skills, talent and dedication, we are meeting the needs of our clients.


    Technical Specification:

    Model SPS 900 L
    Voltage (V/Hz) 220/50
    Power (W) 650
    Sealing Speed (m/min) 0 ~ 12 (0 ~ 16)
    Sealing Width (mm) 8 ~ 10
    Temperature range (Deg.C) 0 ~ 300
    Distance from the sealing center to the conveying table (mm) 10 ~ 40
    Convevor size ( L x W )mm 840 x 153
    Film Thickness (mm) 0.08
    Single Conveyor Loading (Kg) 1
    Overall Conveyor Loading (Kg) 3
    Overall Dimension (LxWxH)mm 840 x 380 x 320
    Net Weight (Kg) 32

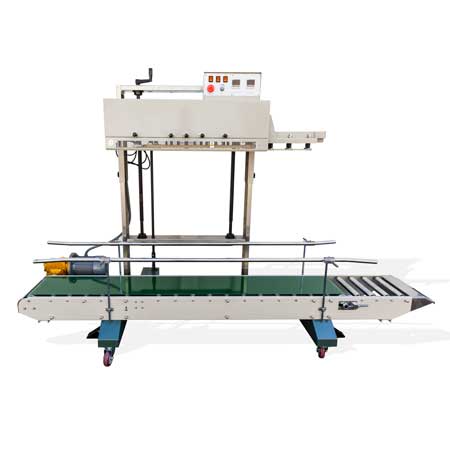

    Vertical Continuous Band Sealer:

    vertical_continuous_band_sealer

    We can customize the Heavy Duty Vertical Continuous Band Sealer as per client's requirements.These products are extremely sturdy in nature, with the energy consumption of 230 W, quick speed of sealing, which is 0 to 10 m per min and with the sealing width of 8 to 10 mm.Our Heavy Duty Band Sealer Machine is universally famous for its high quality and performance standards. Located at Indore,India.
    we have a team of experienced professionals, whose aim is to work hard and provide the clients with the best band sealing machine of continuous type. Our expert and dedicated team of engineers, technicians and other allied workers offer after-sales support as well as training to the clients, as a part of our business of service provider. All the business activities are handled under the guidance of our mentors, who have supported us to attain a leading position in the market.





    Technical Specification:

    Model SPS 1100
    Voltage (V/Hz) 220/50
    Power (W) 230
    Heat Sealing Power (w) 300x4
    Sealing Speed (m/min) 0 ~ 10
    Sealing Width (mm) 8 ~ 10
    Temperature range (Deg.c) 0 ~ 300
    Distance from the sealing center to the conveying table (mm) Nil
    Conveyor size (L x W)mm 1400x250
    Film Thickness (mm) 0.12 to o.18
    Single Conveyor Loading (Kg) 5
    Overall Conveyor Loading (Kg) 15
    Overall Dimension (LxWxH) mm 1450 x 680 x 1480
    Net Weight (Kg) 107
