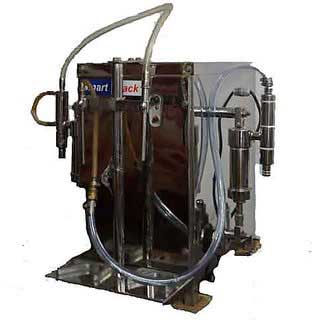

Double Nozzle Filling Machine :

double_nozzle_filling_machine

We have the huge variety of the highly competent and long lasting range of double nozzle rotary filling machines is manufactured with the superior quality of raw materials. Used for uniform filling, filling mechanism of these machines is easily adjustable to different volumes. These machines are corrosion resistant and require less maintenance.

Features :

  • Correct & uniform filling.
  • Filling mechanism easily adjustable to different volumes.
  • Extremely accurate filling volume at each pumps setting.
  • Specially designed no tube no fill mechanism.
  • Quick changeover from one tube size to another.

    • Technical Specification:


    Product Name Double Nozzle Filling Machine SPS 2012 Double Nozzle Filling Machine SPS 202
    Specifications Value
    Model No. SPS 201 SPS 202
    Filling Heads 2 Heads 2 Heads
    Output/Min. 50-60 Container 50-60 Container
    Power 440v 3 Ph 50HZ 440v 3 Ph 50HZ
    Input Container (Dia/Height) D-16mm to 100mm / H-100mm Max D-16mm to 100mm / H-100mm Max
    Tolerance Precision ≤± 1% ≤± 1%
    Volume 2 to 500ml 2 to 500ml
    Materials 316 L Stainless Steel 316 L Stainless Steel
    Dimension in mm (L*W*H) 640*755*680 640*755*680
    Capacity 100 ml to 200ml 250 ml to 1 ltr.
    Weight 100kg 100kg
